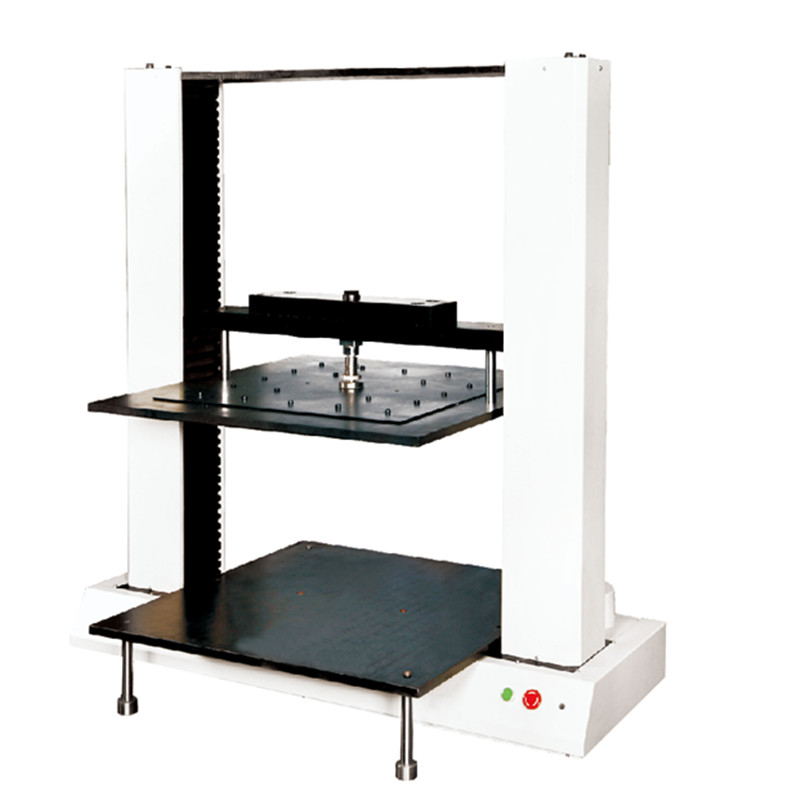

Box Compression Tester (Gbn 2000z) is designed and manufactured as per the provision of GB/T16491 and conforms to the requirements of GB4857.4 transport packaging case pressure test, GB/T4857.16 transport packaging case stowage test and ISO2872 and ASTMD642 pressure tests. It is applicable to carry out proof pressure, deformation and stowage tests for soft package cases with corrugated cases, honeycomb crates, and other packaging cases.
Features
It adopts the DC motor to drag the driving system to form the action of board-pressing through the screw rod. The high-precision force sensor can accurately reflect the loading conditions of the test pieces. Its microcomputer system acquires and handles the test parameters, and outputs and displays the test results.
1. It is equipped with microcomputer control, full digital circuits and professional test control software.
2. It offers man-machine dialog and the test parameters can be entered through keys. Then, it can choose the test methods and automatically finish the tests.
3. It can be used to measure deformation under fixed pressure and test the compressive resistance under fixed deformation, and carries through maximum collapsing force and stowage tests.
4. It dynamically and digitally displays sample indexing, test pressure, sample deformation and starting pressure.
5. It can print the test results.
6. It is of light material, lightweight design and ultralow power dissipation and energy saving.
7. It adopts the interactive mode to key in test procedures and parameters.
8. It performs the set programs to automatically finish the whole test process.
9. It has the specialized software design and is built in with various relevant testing operational programs.
10. The initial pressure can be keyed in. Then, it can preset the pressure value and test the compressive deformation amount, and preset the compressive deformation amount test the compressive resistance under fixed deformation state.
11. It can be used to test the maximum collapsing force of the packaging cases and the deformation on the occasion.
12. It digitally displays sample indexing, force value, deformation and starting pressure.
13. It is provided with high-precision AD switching, preamplification, data processing and test value output and the whole digital circuitry can guarantee testing accuracy and stable performance.
14. It is provided with such functions as overload protection, malfunction alert and limit travel protection.
Technical specification
1. Maximum load: 20KN
2. Accuracy rating: Grade 1
3. Effective force measurement range: 0.4%-100%
4. Force measurement precision: Within ± 0.5% of indicated value
5. Test force resolution: ± 120000 codes without internal and external branching, and the resolution remains constant in the whole course.
6. Effective testing space: 800mm*800mm* 9600mm
7. Range of test speed: 0.01-200mm/min (stepless speed changing)
8. Speed accuracy: Within ± 1% of the indicating value.
9. Accuracy of displacement measurement: Within ± 1% of the indicating value.
10. Device layout: A host computer
11. A brand computer, and a A4 color ink jet printer (optional)
