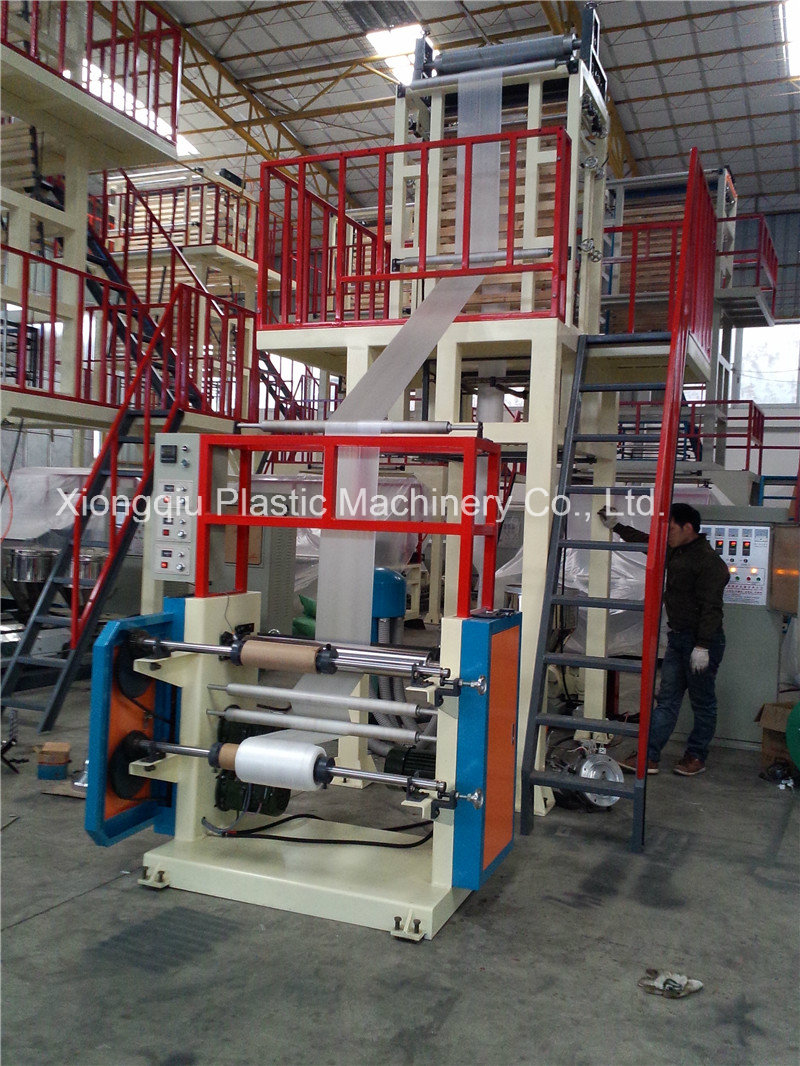

It is used to blow various plastic film of LDPE, HDPE and LLDPE, etc.. Widely used in packing food stuff, garment and textile, daily product, industrial products and agricultural field.
| model | suitable material | film width | thickness | max output | screw diameter | L/D ratio | temp. controller | barrel cooling | driving motor |
| FM-800 | LDPE/HDPE/LLDPE | 700mm | 0.02-0.20mm | 45kgs/hr | Φ45mm | 30:1 | 5 zone | 120w*2 | 11kw |
| die diameter | air ring diameter | cooling fan | take up width | effective width | take up motor | winder width | effective width | winder moto |
| Φ150mm | Φ250mm | 950w | 800mm | 700mm | 1.5kw | 800mm | 700mm | 30kg |
| die structure | spiral mandrel die chrome plated surface 40Cr |
| optional equipment | auto-loader device, film surface treater, air compressor, fast change net, double center winder/cage roll flat winder, rotary die head, double wind air ring |
rotary die head
double wind air ring
