Widely used in packaging.

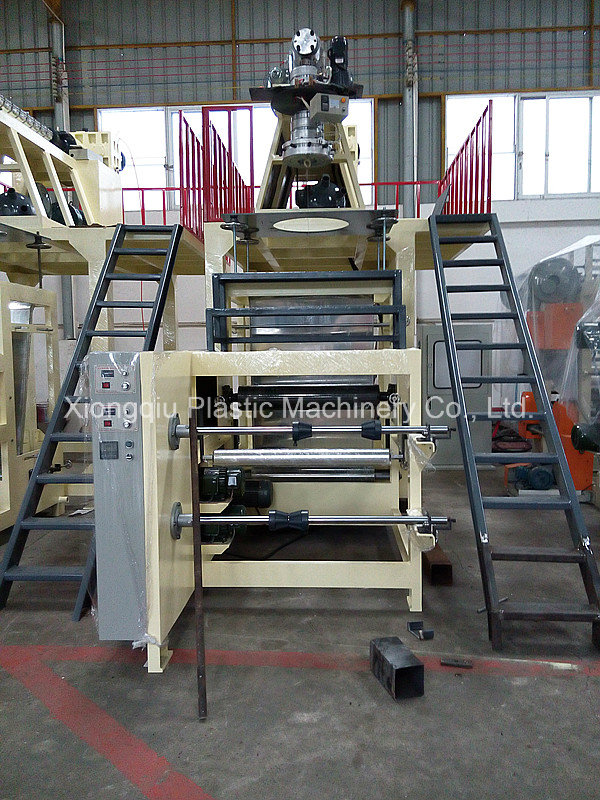

PP film blowing machine
mixer
rotary die head
| model | suitable material | thickness | film width | max output | screw diameter | L/D ratio | temp. controller | barrel cooling | driving motor |
| FMP-1100 | PP | 0.02--0.2mm | 250-900mm | 90kgs/hr | Φ75mm | 30:1 | 5 zone | 250w*3 | 30kw |
| die diameter | air ring diameter | cooling fan | take up width | effective take up width | take up motor | winder width | effective winde width | winder motor |
| Φ320mm | Φ450mm | 1.5kw | 1000mm | 900mm | 2.2kw | 1000mm | 900mm | 50kg |
| die structure | spiral mandrel die chrome plated surface 40 Cr |
| optional equipment | auto-loader device, film surface treater, air compressor, rotary die head |
PP film blowing machine
mixer
rotary die head
