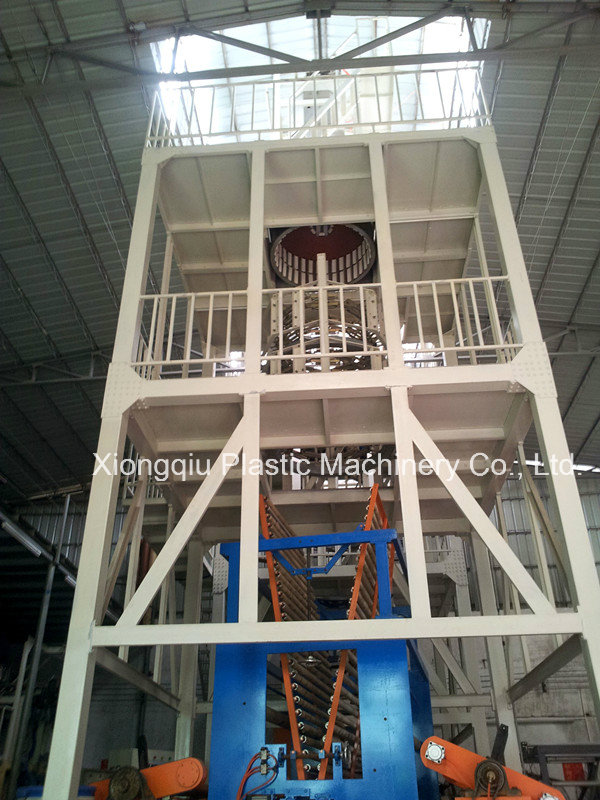

This machine is POF film blowing machine with 5 layers and it is also heat shrinkable film blowing machine.
five extruder
material film
| Model | FMF5-1500 | FMF5-1800 | FMF5-2000 | FMF5-2200 |
| layers | 5 layers | |||
| suitable material | PP / LDPE / PE | |||
| max film width | 1300mm | 1600mm | 1800mm | 2000mm |
| thickness | 0.012--0.03mm | |||
| max output | 100kg/h | 130kg/h | 150kg/h | 170kg/h |
| screw diameter | Φ45mm*5 | Φ50mm*5 | Φ55mm*5 | Φ65mm*5 |
| L/D ratio | 30:1 | |||
| screw max speed | 5--80r/min | |||
| winder diameter | Φ600mm | |||
| max winder speed | 120m/min | |||
| general power | 260kw | 300kw | 320kw | 350kw |
| dimensions (L*W*H) | 10m*5.8m*9.5m | 10m*5.8m*10.5m | 12m*6.6m*14.5m | 14m*8m*15m |
