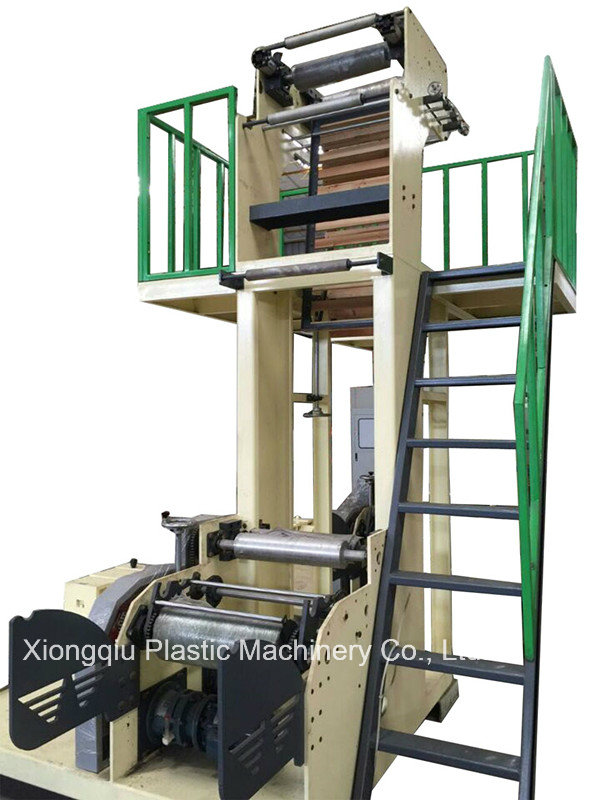

It is mini type film blowing machine and it is also a test type.
Its suitable materials are LDPE and LLDPE.
mini film blowing machine
Its suitable materials are LDPE and LLDPE.
| Model | FM30-400 | FM35-500 |
| suitable material | LDPE / LLDPE | |
| film width | 60--330mm | 60--430mm |
| thickness | 0.012--0.06mm | |
| screw diameter | Φ30mm | Φ35mm |
| L/D ratio | 30:1 | |
| die diameter | Φ80mm | Φ120mm |
| main power | 3.7kw | 5.5kw |
| max output | 15kg/h | 18kg/h |
| optional equipment | film surface treater, air compressor | |
