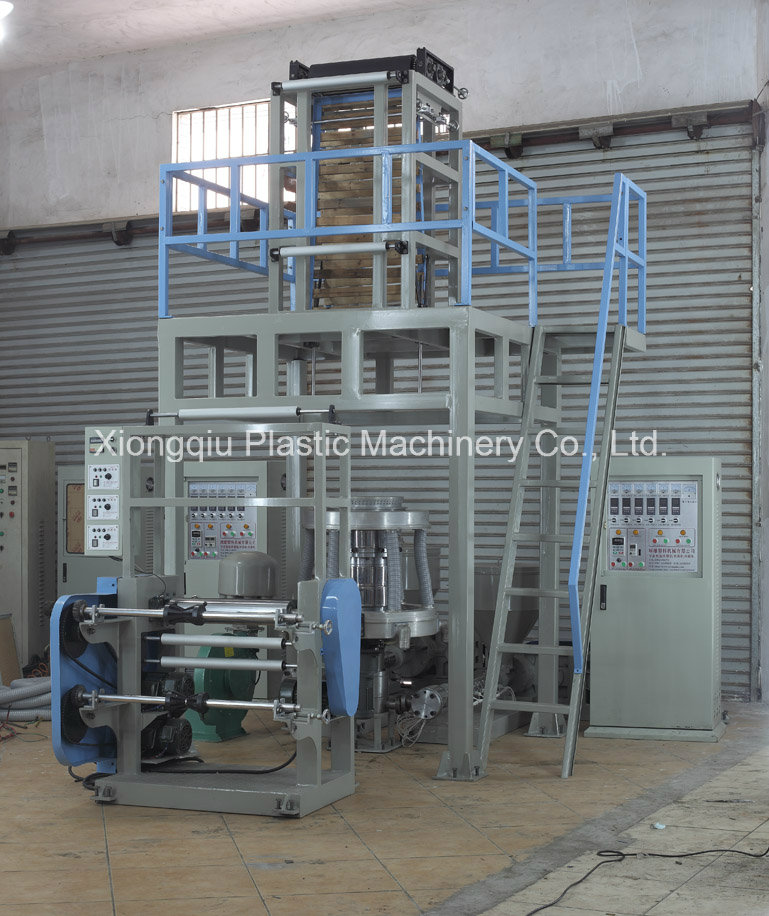

It is used to blow various plastic film of LDPE, LLDPE and HDPE etc.. Widely used in packing food stuff, garment and textile, daily products, industrial products and agricultural field.
| model | suitable material | thickness | film width | max output | screw diameter | L/D ratio | temp. controller | barrel cooling | driving motor |
| FM-800 | LDPE/LLDPE/HDPE | 0.02-0.20mm | 700mm | 70kgs/hr | Φ45mm | 30:1 | 5 zone | 120w*2 | 22kw |
| die diameter | air ring diameter | cooling fan | take up width | effective take up width | take up motor | winder width | effective winder width | winder motor |
| Φ150mm | Φ250mm | 2.2kw | 800mm | 700mm | 1.5kw | 800mm | 700mm | 1.5kw |
| die sturcture | spiral mandrel die chrome plated surface 40Cr |
| optional equipment | auto-loader device, film surface treater, air compressor, fast change net, double center winder/cage roll flat winder, rotary die head, double wind air ring |
air cylinder automatic fast change net
center winder
