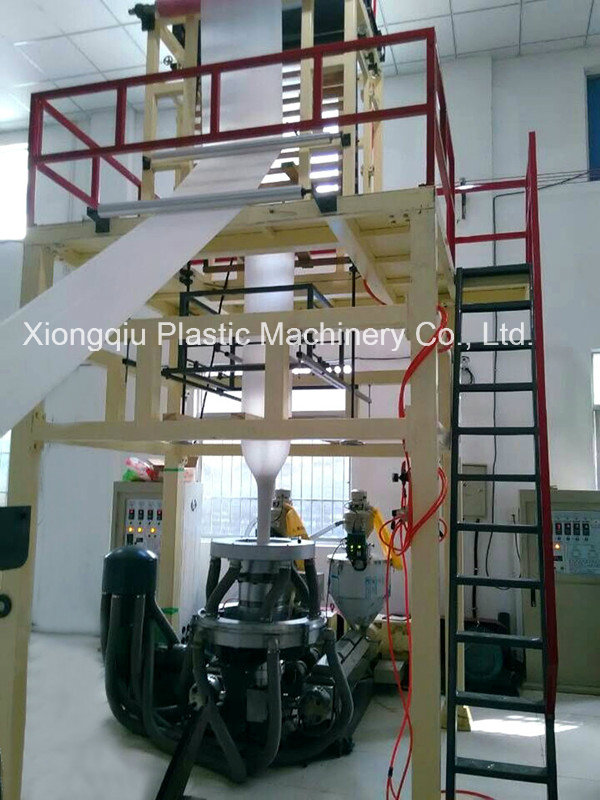

Extruders plastify the same kind of material of 3 different kinds of materials and force them into the co-extrusion compound head, the physical performance and intensity of thin is greatly improved. Such thin film has good separation which is able to meet teh quality requirement of follow up packaging and printing machine for films. Widely used for compound film, insulated film and all kinds of agriculture film field.
friction winder
double lip air ring:
manual fast change net:
| Model | FM2-800 | FM2-1100 | FM2-1300 | FM2-1700 | FM2-1900 | FM2-2200 |
| suitable material | LLDPE/LDPE/HDPE | |||||
| thickness(mm) | 0.02--0.20 | |||||
| film width(mm) | 700 | 1000 | 1200 | 1600 | 1800 | 2100 |
| max output(kg/h) | 65 | 85 | 105 | 130 | 175 | 220 |
| screw diameter | Φ45mm*2 | Φ50mm*2 | Φ55mm*2 | Φ65mm*2 | Φ70mm*2 | Φ75mm*2 |
| material of screw and barrel | 38CrMoAIA | |||||
| gear box | 146*2 | 173*2 | 173*2 | 180*2 | 200*2 | 200*2 |
| L/D ratio | 30:1 | |||||
| temp. controller | 3 zone | 3zone | 3zone | 4zone | 4zone | 4zone |
| barrel cooling(w) | 120*4 | 120*4 | 1204*4 | 120*6 | 250*6 | 250*6 |
| driving motor(kw) | 11*2 | 15*2 | 18.5*2 | 18.5*2 | 30*2 | 30*2 |
| inverter(kw) | 11*2 | 15*2 | 18.5*2 | 18.5*2 | 30*2 | 30*2 |
| die diameter(mm) | HDPEΦ80 LDPEΦ180 | HDPEΦ100 LDPEΦ250 | HDPEΦ120 LDPEΦ250 | HDPEΦ140 LDPEΦ350 | HDPEΦ160 LDPEΦ450 | HDPEΦ180 LDPEΦ630 |
| air ring diameter(mm) | HDPEΦ180 LDPEΦ280 | HDPEΦ200 LDPEΦ350 | HDPEΦ220 LDPEΦ350 | HDPEΦ280 LDPEΦ450 | HDPEΦ300 LDPEΦ550 | HDPEΦ350 LDPEΦ900 |
| die structure | Spiral mandrel die chrome plated surface 40Cr | |||||
| temp. controller | 2 zone | 2 zone | 2 zone | 2 zone | 3 zone | 3 zone |
| cooling fan(lw) | 1.5 | 2.2 | 3.7 | 4 | 5.5 | 5.5 |
| take up width(mm) | 800 | 1100 | 1300 | 1700 | 1900 | 2200 |
| effective width(mm) | 700 | 1000 | 1200 | 1600 | 1800 | 2100 |
| take up motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| take up speed(m/min) | 0--80 | 0--80 | 0--80 | 0--80 | 0--80 | 0--80 |
| winder width(mm) | 800 | 1100 | 1300 | 1700 | 1900 | 2200 |
| effective width(mm) | 700 | 1000 | 1200 | 1600 | 1800 | 2100 |
| max winding diameter(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
| winder type | torque motor single winder | |||||
| winder motor power(kgf.cm) | 30 | 30 | 50 | 50 | 80 | 100 |
| machine size(m) | 4.5*2.4*4.2 | 6.3*3.3*6.0 | 6.5*3.15*6.0 | 6.5*3.66*6.5 | 6.5*3.8*7.5 | 8.0*3.95*7.5 |
| voltage | 380V 50Hz 3Phase | |||||
