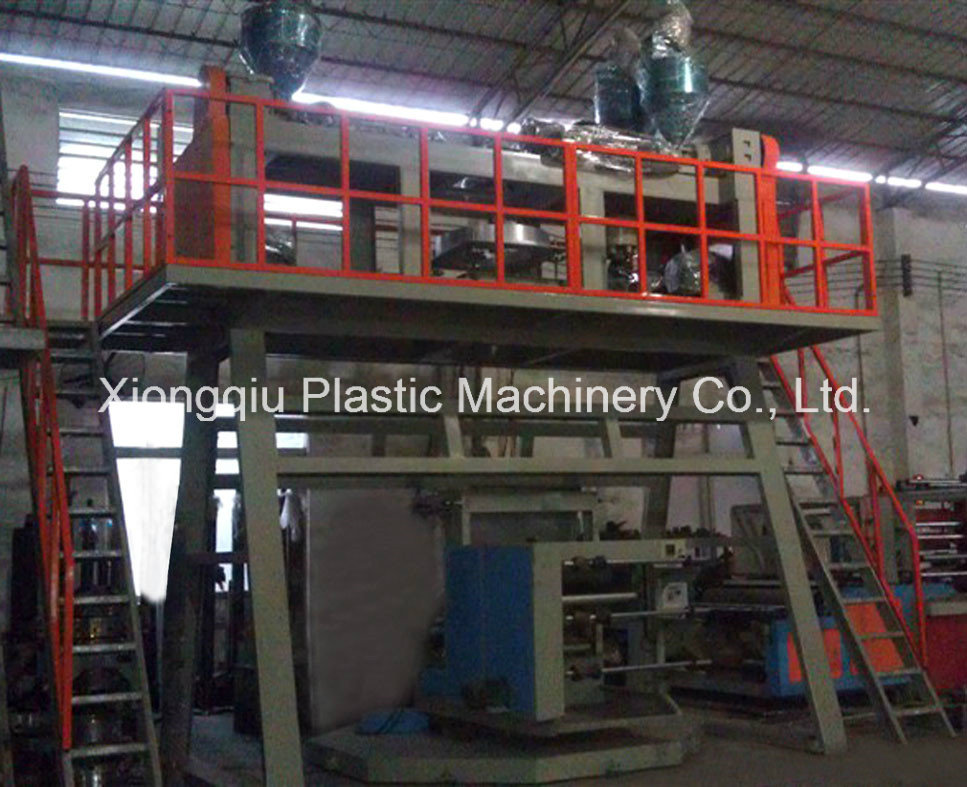

The machine produces excellent plastic of film uniform thickness, transparency, smooothness, shrinkage and other quality indicators of the printing grade films technical standards, as it uses many technologies such as rotary winder, frequency control and automatic temperature control. The film is characterized by high strength, good transparency, waterproof, moisure-proof, anti-fouling ability and insulation properties. So it is used to make packaging materials, not only can simplify the process bags to shrink packaging volume, but also as contraction of the transparent film swathe the goods strictly packages, which can clearly show the object's color and shape. It is widely used in packaging.
| Model | FMP3-1000 | FMP3-1100 | FMP3-1200 |
| suitable material | PPA / PPE |
| film width (mm) | 200--900 | 300--1000 | 400--1100 |
| thickness | 0.02--0.15mm |
| screw diameter | Φ45mm*3 | Φ55mm*3 | Φ65mm*3 |
| L/D ratio | 30:1 |
| die diameter | Φ250mm | Φ380mm | Φ450mm |
| die structure | Spiral mandrel die chrome plated surface 40Cr |
| main power | 11kw*3 | 18.5kw*3 | 22kw*3 |
| max output | 75kg/h | 125kg/h | 160kg/h |
| winder way | Torque motor winder |
| optional equipment | auto-loader device, film surface treater, air compressor, rotary die head, draging rotary |
winder
3 layers co-extrusion die head
film
