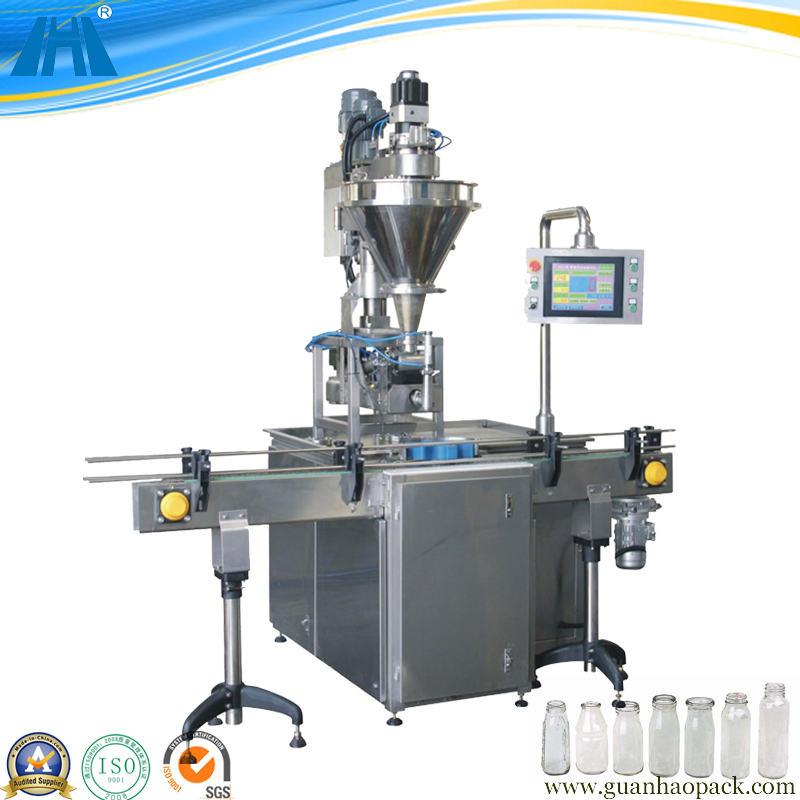

Automatic Powder Filling Machine For Bean, sesame powder
1) Features:
This equipment used PLC micro-computer software control system, which has powerful memory function,and able to pre-setting 50 group of filling parameters. It is simple and quick operation. The filling controlled by mutual inductance stepper motor. It ensures that the speed of feed material is same as the imported inverter to ensure that the machine's stability and reliability.
2) Basic purpose:
It can be used for a variety of cylindrical objects
( glass bottle, ceramic bottle, metal bottle, Plastic bottle),
such as food cans, bottles, medicine bottles
According to client's need, we have invented a range series of
automatic powder filling machines, this model can suit for produce big volume,
but have more specification(100g, 200g, 250g, 355g, 1000g, 2500g and so on)
3) Technical parameter:
Filling precision: ±1.g
Scope of filling bottle height of 10~100 (mm) length of 10~300(mm)
Production capacity: 40-60 bottles/min
Rated voltage:220V /50Hz
Total power: 300 W
Dimensions: 1710×950×300mm (Length×Width×Height)
Machine weight: 146Kg
4) Equipment advantage:
1. Whole body are made of stainless steel is help easily cleaning and anti-rust.
2. It's easy to adjust and installation, finished product is nice, tidy, reliable, and
steady. Correspond with ISO, GMP, SGS standard, it is be good health to human body.
3. Due to use screw volumetric filling method ensure high filling accuracy.
4. At the end of conveyor can add de-dust device, unqualified product remove device
5) Main parts
Touch screen: Japan Siemens
Inverter: Schneider
Pneumatic: Taiwan Airtac
6) Spare parts Material:
Conveyor: POM or Stainless steel
7) Delivery days
25-30 days as soon as received deposit.
8) Packaging
Wood case/ good Cartoons
9) Our commitment
Warranty 1 year.
