Meat Paste Bottling Production Line
Product introduction:

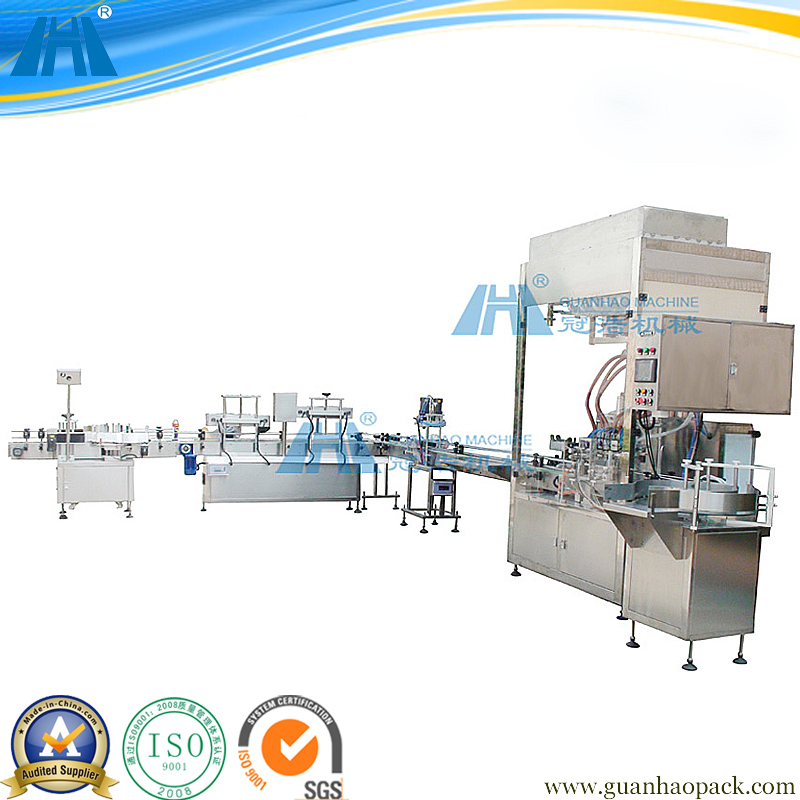

This production line are consist of 6 heads filling machine, automatic place lids, capping machine, Aluminium foil sealing machine, bottle mouth shrinking machine.
6 heads bottling machine technical parameter:
The number of filling heads: 6
Filling volume: 100-1000ml
Filling type: Piston volumetric filling
Filling speed: 2500BPH(100ml)
Filling accuracy: ± 1%
Air pressure: 0.5-0.8MPa
Conveyor: 82mm POM chain piece belt
Drive motor: 550W frequency regulation speed motor
Automatic placed covers machine:
Suit for the bottle: 60~100(mm)
Bottle diameter: 65-100(mm)
Placed cap speed: 30-40pieces/minute
Rearrange covers: 140W
Capping parameter technology:
Bottle diameter: 30~100(mm)
Bottle cover diameter: 30~50(mm)
Production line capacity: 30-40piece/min
Capping machine motor: 90W
Aluminium Foil Sealing Machine Technology Parameter:
Bottle mouth diameter: 30~120mm
Bottle height: 50~300mm
Capacity: 30-40BPH
Conveyor: H 1700mm W 82mm
Conveyor speed: 0~13.5M/m
Voltage: 220V/50Hz
Total power: 4000W
Dimension size: H 1700× W 410× H 1350mm
Total machine weight: 180Kg
100/350 Bottle shrinking machine
T. Power: 6KW, 220V.
Heater: 900W 6Pieces.
Temperature: 0~18 degree optional,
Speed: 0~10 meter adjustable.
Conveyor size: W 82 cm, The heating chamber length 1.2m, entrance height: 10-35cm adjustable.
Dimension size: Total length 3.53M, entrance 1.8M, exist: 0.53M. Working table: 1meter, W: 0.3Meter Form ground: 75CM.
Can customize according to your requirement.
