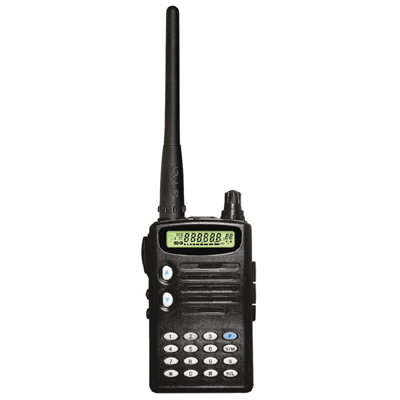

Installment Transceiver Made in China

XT- 10 VHF
XT- 40 UHF
SPECIFICATION:
2W with slim size
1100mAH battery
16 channels
Loud with clear Audio
Power Saving
Low battery Alert
153 CTSS/DCS setting
BCL&BCLO
2-tone Decode Programmale
Full Scan Option
PC Program or Cable Clone
Weight: 250g
Rapid Charger Special for Li-io battery

General:
Frequency range: VHF: 136MHZ-174MHZ, UHF: 350MHZ-370MHZ, 400MHZ-430MHZ, 430MHZ-470MHZ
Channel Capability: 16channels
Approvals: FCC and industry Canada
Channel Spacing: 12.5/25KHZ
Nominal voltage: 7.4 Volts
Operation temperature; -30~+60
Antenna Impedance: 50Ohms
Weight: 9.5Oz with 1800 mAH Battery
Dimensions: 4.5*2.61.5*38inches
Audio Response: Per EIA Specifications

Transmitter:
RF Power: 2 Walts
Modulation: F3E
Frequency Stability: +/-2.5ppm
Max Deviation: +/-5KHZ/2.5KHZ
HUM&Noise: 34/40dB
Modulation dist: 5% Max
Channel Spread: 38MHZ, no turning
Battert Drain: 1.1Amp at 2 watts

Receiver:

Usable Sensitivity: 12dB SINAD: 0.25uv
A. C. R: 60dB
Frequency Stability: +/-2.5ppm
Audio Distortion: 5% at 0.5 watts
Channel Spread: 38MHZ, tuning
Battery Drain: Stand by: 45mA
Inter mediate Fre.: 1@45HMZ, 2@455KHZ
Spurious response: 70 dB
Hum & Noise: 34/40dB
